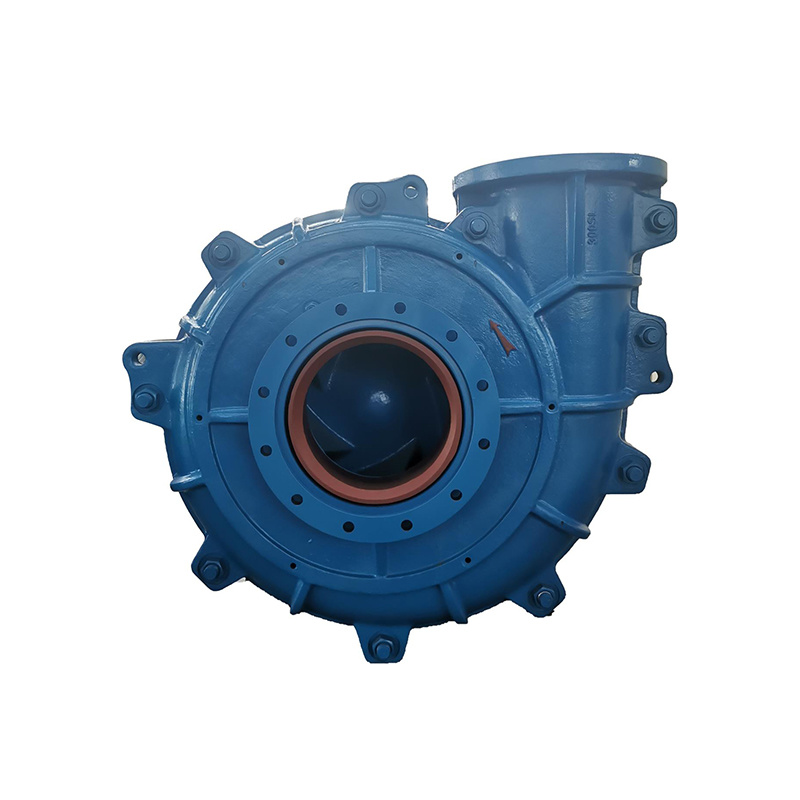

Type SX(R),SH,SM(R)pumps are cantilevered, horizontal, centrifugal slurry pumps. They are designed forhandling abrasive or corrosive slurry in the metallurgical, mining, coal, power, building material and other industrialdepartments etc.
SPL series slurry pump: the impeller, volute lining, and plate lining are all made of wear-resistant high-chromium metal materials.
Pump shaft seal: packing seal, impeller + packing seal, mechanical seal.
This pump is suitable for: metallurgy, alumina production, coal, electric power, mining, chemical industry and other industries.
SPH series mud pump: impeller, cylinder liner and casing are all made of metal materials.
Pump shaft seal: packing seal, extruder + packing seal, mechanical seal.
The material of the mobile parts has good wear resistance and anti-corrosion properties;
This pump is suitable for: medium and high lift applications in metallurgy, mining, coal, electric power and other industries, such as mud transportation in metallurgy, mining, electric power, steel plants, chemical industry and other industries.
SH series high-lift slurry pump: the casing, impeller and cylinder liner are all made of wear-resistant metal materials.
Pump shaft seal: packing seal, extruder + packing seal, mechanical seal.
This pump is widely used in: transporting super abrasive slurries such as tailings (gold ore, iron ore, steel plant slag treatment), transporting low-density high-head or high-density low-abrasive high-head slurries.
The advantages of SH mud pump: high lift, high efficiency, good suction performance, energy saving, small vibration, low noise, reliable operation, long service life and easy maintenance.
Caliber: 25~150mm; Flow rate: 5~900m3/h; Head: 15~90m
Application conditions: tailings and other super abrasive pulp transportation (gold, iron ore, steel slag treatment, etc.), series use is more advantageous.
Structural features:
• Horizontal, single stage single suction, cantilever, double pump housing;
• Wide flow channel, excellent anti-clogging performance, superior cavitation performance, heavy flow parts more wear-resistant;
• Large flow, high head, can be used in series, to meet different mining conditions, long-distance transportation;
1. Horizontal, single stage, single suction, cantilever, double shell pump.
2. Wide channel, good anti-clogging performance, good cavitation performance.
3, large flow, low water head, meet different mining conditions, short transportation distance.
4, the support part adopts adjustable cold lubrication, external fuel nozzle, easy maintenance. Part of it can be equipped with a thin oil holder.
5. Small size, light weight, simple structure, easy to disassemble, easy for workers to maintain and maintain, saving a lot of labor.
6. The flow parts are made of various metal materials and have good wear resistance and corrosion resistance. The wear rate of the product is low, and the overall efficiency decreases slowly and smoothly as the flow parts wear out.
7. The discharge position of the pump can be installed and used at 45° intervals at eight different angles as required.
The company's main products include a full range of mud pumps, desulfurization and denitrification FGD project special pumps, sand and gravel pumps, dredging pumps, foam pumps, chemical process pumps, PU rubber mud pumps and other dozens of varieties, hundreds of models, widely used in mining (beneficiation), metallurgy, coal, electricity, flue gas desulfurization, desilting, irrigation, etc. Water conservancy engineering, petroleum, chemical industry, municipal, environmental protection, sewage treatment and other industries.
The total designed production capacity of the company is 10,000 units (sets) per year, and the annual production of all kinds of high chromium alloy castings is 2000 tons. The production area currently consists of five production areas and two centres, namely casting, heat treatment, machining, metal forming and welding, assembly and coating areas; Finished parts warehouse; Quality inspection and analysis, as well as integral hydraulic testing center.
Structural features:
1. Horizontal, single stage, single suction, cantilever, double shell pump.
2. Wide channel, good anti-clogging performance, good cavitation performance.
3, large flow, low water head, meet different mining conditions, short transportation distance.
4, the support part adopts adjustable cold lubrication, external fuel nozzle, easy maintenance. Part of it can be equipped with a thin oil holder.
5. Small size, light weight, simple structure, easy to disassemble, easy for workers to maintain and maintain, saving a lot of labor.
6. The flow parts are made of various metal materials and have good wear resistance and corrosion resistance. The wear rate of the product is low, and the overall efficiency decreases slowly and smoothly as the flow parts wear out.
7. The discharge position of the pump can be installed and used at 45° intervals at eight different angles as required.
Product Introduction

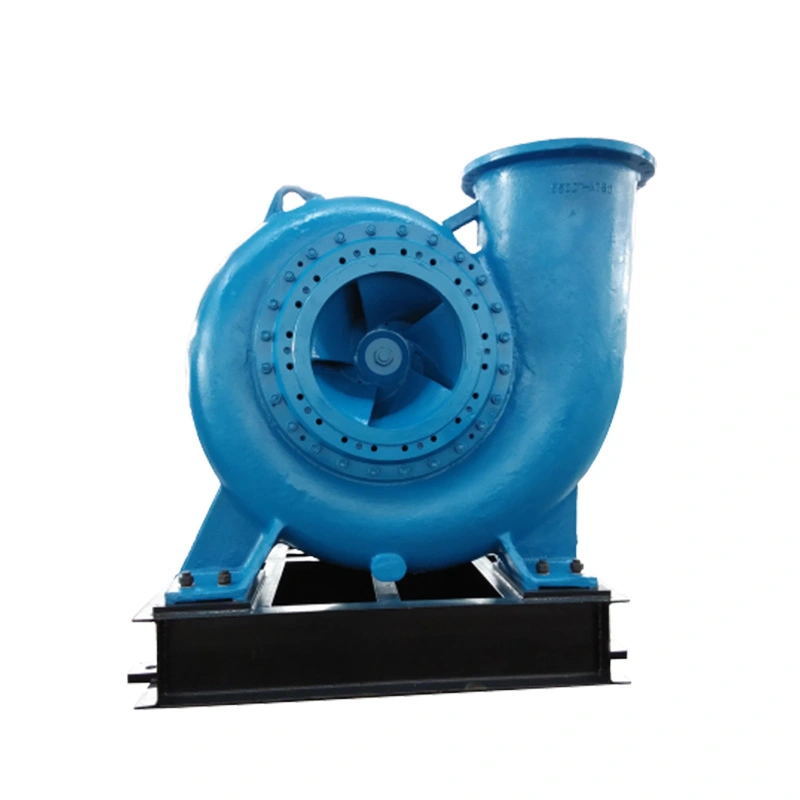

DT Series Desulfurization Pump: Impeller, Guard Plate, and Sleeve are made of metal material.
TLR Series Desulfurization Pump: Impeller and Inlet Cover are made of metal, while Guard Plate and Sleeve are made of rubber material.
Shaft Seal of the Pump: Mechanical seal.
This pump is suitable for: Slurry circulation pump in wet FGD (Flue Gas Desulphurization) projects in power plants.

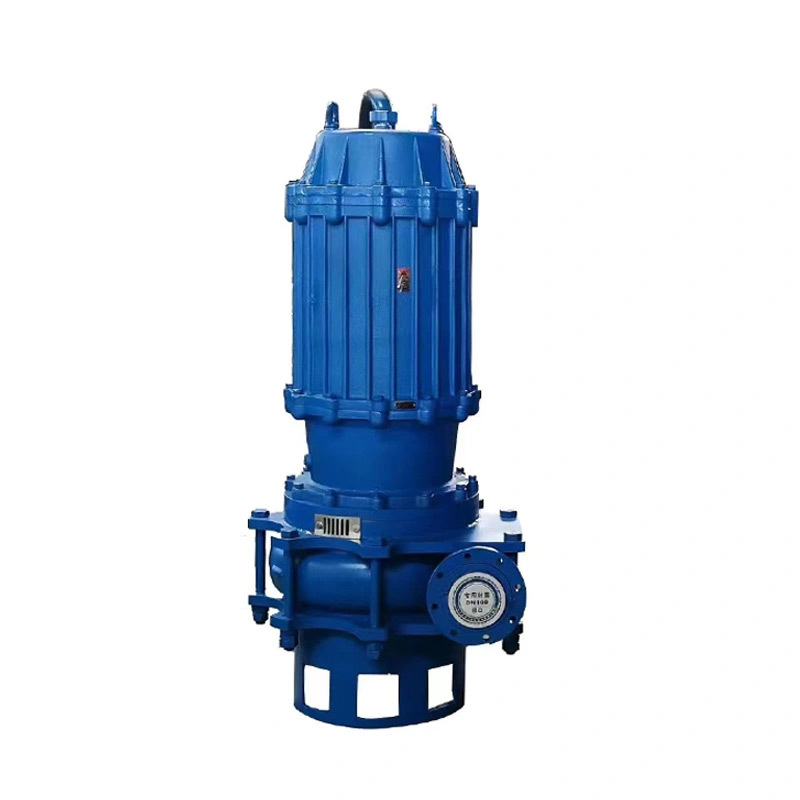

ZJQ series submersible mud pump: impeller, protection plate, sleeve are metal material; Agitator material is manganese steel.
Pump shaft seal: submersible mechanical seal.
Supporting motor: diving special motor.
Mixer: special diving reducer.
The pump is suitable for: when the mud pool is deep and needs to be run underwater, in order to extract the mud in the mud pool, usually the shaft length of the submersible mud pump can not meet the design requirements.
Good performance on Marine structure:

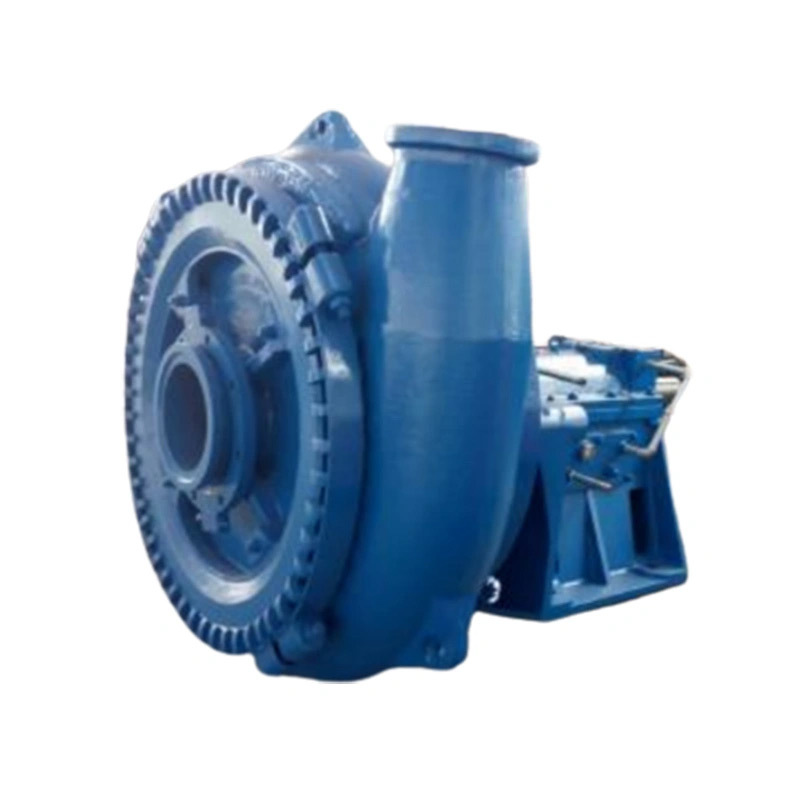

Simple and reliable structure: this type of dredging pump adopts single pump shell or double pump shell, single shell stage, single suction, cantilever, horizontal structure.
Depending on the type of connection to the gearbox, there are two typical structures, one is independently supported and the other is combined with the gearbox. The lubrication mode of the pump with support is grease lubrication or thin oil lubrication.
The double housing design allows the pump body to remain safe even when the cylinder liner is worn. Easy to remove and maintain: WN dredging pumps can be removed from the front. This makes disassembly and maintenance easier.
1. Horizontal, single stage single suction, cantilever, single pump shell structure sand pump.
2. The pump adopts single pump shell structure, adopts card box connection, and the flow channel is wider than other slurry pumps.
3. Excellent cavitation performance.
4. The discharge direction of the pump can be in any position of 360°, with the characteristics of easy installation and use.
5, the support part is lubricated by adjustable vinegar, external fuel nozzle, easy maintenance.
6. Small size, light weight, simple structure, easy to disassemble, easy for workers to maintain, saving a lot of labor.
7. This product adopts CAD design method, excellent hydraulic performance, high efficiency, energy saving, long service life, reasonable structure, reliable operation, low vibration, low noise, easy maintenance.
8. The mobile parts are made of a variety of metal materials, with good wear resistance and corrosion resistance, the product wear rate is low, with the wear of the mobile parts, the overall efficiency declines slowly and steadily.
1. The pump adopts double shell structure, some parts are SX series general, bearing rotor is SV series general;
2. The discharge direction of the pump can be changed every 45° and can be installed in eight different directions according to needs;
3. The impeller is specially designed with a special guide blade to maximize the suction and discharge of foam mud;
4. The mobile parts are made of various types of metal materials and have good wear resistance and corrosion resistance.
